OPC UA

在本示例中,您将学习如何启用OPC UA插件,并将RoboDK转换为OPC UA服务器。

我们将使用UaExpert软件和Beckhoff TwinCAT3 TF6100浏览一些设置。

OPC UA - 图片 4

配置OPC UA服务器

OPC UA插件允许你配置一些设置,如服务器端口。你还可以选择激活服务器、停用服务器或随 RoboDK 自动启动服务器。

启用OPC UA插件后,在菜单栏选择OPC UA➔OPC-UA Settings以配置OPC UA设置。

OPC UA设置窗口会显示在界面左边,如下图所示:

OPC UA - 图片 5

Tip:你可以更改 OPC UA 服务器的端口,按"Start"按钮更改OPC UA服务器的端口。

OPC UA - 图片 6

如果你看到类似 "RoboDK’s OPC UA server running on port 4840"的消息,则表示RoboDK中的OPC UA服务器已启动。

Note:请确保上一节中配置的 OPC UA 端口已在 Windows 防火墙、反病毒软件或系统要求的任何其他安全设置中启用。

创建您自己的工作站

您可以使用任何包含一个或多个机器人的RoboDK工作站来测试OPC UA连接。

OPC UA - 图片 7

使用UaExpert实现

您可以使用UaExpert软件测试与RoboDK OPC UA服务器的连接。

您可以从Unified Automation网站下载免费版的UaExpert软件:https://www.unified-automation.com/downloads/opc-ua-clients.html。

OPC UA - 图片 8

添加UaExpert服务器

启动UaExpert,点击按钮"+",即可添加RoboDK OPC UA服务器。

OPC UA - 图片 9

在Add Server窗口,展开Custom Discovery,选择<Double Click to Add Server...> 选项,即可添加RoboDK OPC UA 服务器。

OPC UA - 图片 10

输入上一步配置的OPC UA 服务器URL:opc.tcp://127.0.0.1:48440。

OPC UA - 图片 11

以"None"安全性连接OPC UA服务器。

OPC UA - 图片 12

服务器就配置好了。

OPC UA - 图片 13

连接服务器

现在,你可以在UaExpert连接到RoboDK OPC UA服务器。

OPC UA - 图片 14

创建连接后,你可以看到节点和方法。

OPC UA - 图片 15

服务器节点

RoboDK OPC UA服务器内有一些节点,可让您交换有关工作站的一些基本信息。

RoboDK

RoboDK节点:提供RoboDK软件实际版本的节点。

OPC UA - 图片 16

本案例使用的版本:RoboDK 64 Bit v5.5.3.23031。

OPC UA - 图片 17

SimulationSpeed

SimulationSpeed节点:显示实际仿真速度,并允许用户覆盖当前仿真速度。

OPC UA - 图片 18

节点值参考仿真速度的滑动条。

可以从该节点读取当前的仿真速度,并可以覆盖仿真速度。

OPC UA - 图片 19

工作站

Station节点是一个允许用户获取RoboDK中当前工作站名称的节点。

OPC UA - 图片 20

如下所示,Station节点在 RoboDK 中引用了你的工作站名称:New Station(1)。

OPC UA - 图片 21

工作站参数/工作站值

工作站参数(StationParameter)和工作站值(StationValue)是一对设置节点,允许用户获取或设置工作站内的任何参数。RoboDK OPC UA 服务器将持续监控"StationParameter"的实际值,并从"StationValue"节点返回该"StationParameter"的值。

注意:如果工作站参数不存在,则返回空字符串。

OPC UA - 图片 22

在RoboDK中右键单击工作站,点击:工作站参数。

OPC UA - 图片 23

在固定参数模块,我们可以看到工作站的默认参数和值。

OPC UA - 图片 24

工作站参数指的是"Parameter"字段,工作站值指的是"Value"字段。

OPC UA - 图片 25

在工作站参数窗口,点击按钮:添加,我们就可以创建参数。

OPC UA - 图片 26

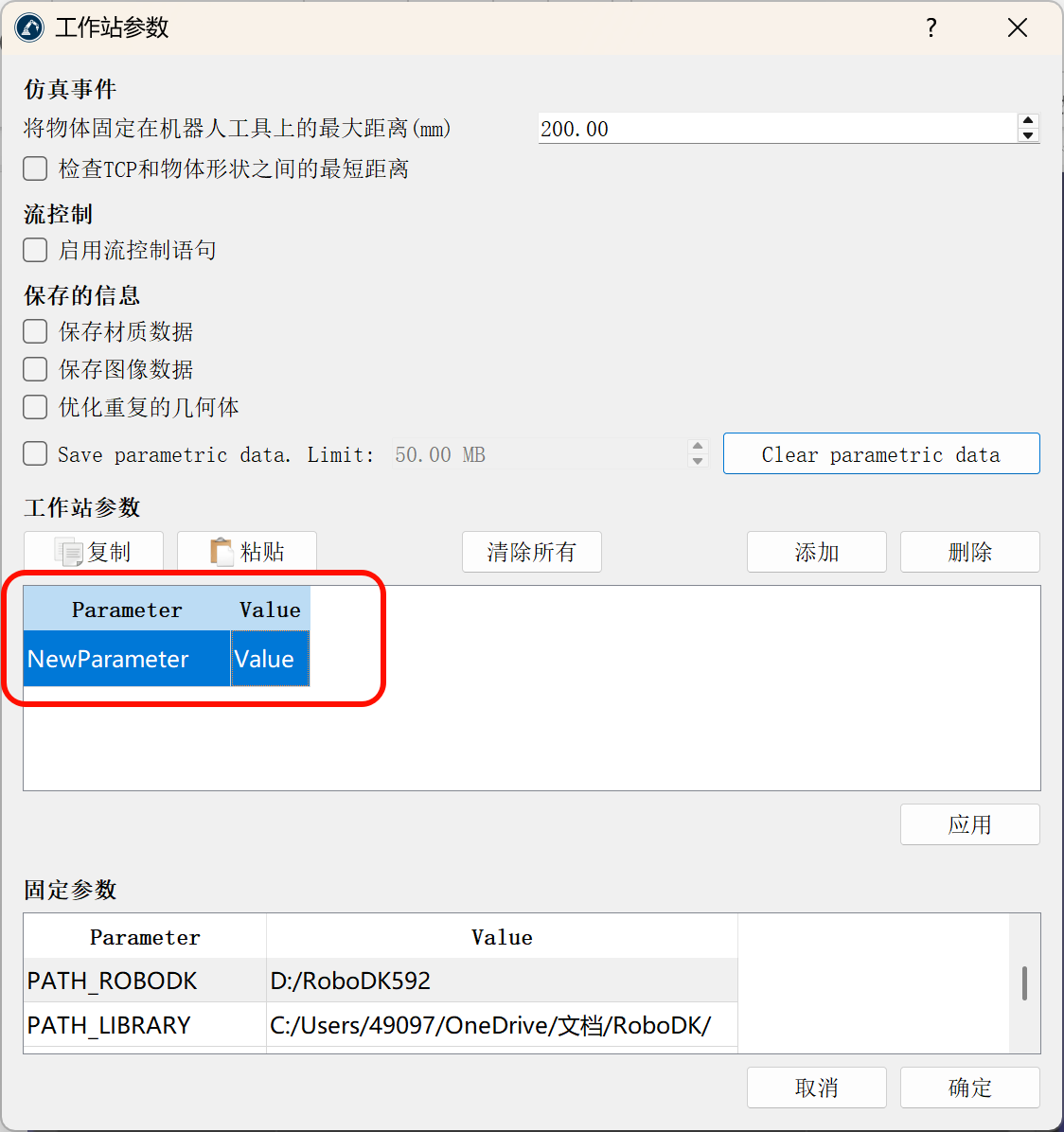

这样就添加了一个新的工作站参数。

OPC UA - 图片 27

输入参数名称和值,然后点击应用即可保存。

OPC UA - 图片 28

您也可以获取自己的工作站参数。

OPC UA - 图片 29

时间

time节点:可以获取RoboDK工作站当前的时间。

OPC UA - 图片 30

返回值是DataTime格式。

OPC UA - 图片 31

该节点会持续更新。

OPC UA - 图片 32

方法

RoboDK OPC UA服务器还提供了一些方法,允许用户动态访问RoboDK工作站数据。

只需要右键点击您需要的方法,选择Call…,即可执行该方法。

OPC UA - 图片 33

getItem

getItem方法:getItem是一个​​通过设备名称获取对象指针(内存地址引用)的关键方法,主要用于跨系统交互时精确定位工作站内的设备。

OPC UA - 图片 34

对于InputArguments(输入参数),设备名称是必需的,您可以将设备名称想象为您的工作站名称、机器人名称等。项目 ID 是OutputArguments(输出参数),用于返回该设备的指针。

OPC UA - 图片 35

在本例中,我接收到了名为“ABB_RB1”的ABB机器人的项目ID(指针)。

OPC UA - 图片 36

如果项目名称无效或在您的工作站内不存在,则返回 0。

OPC UA - 图片 37

getJoints

getJoints是一种允许用户根据项目 ID 从工作站获取机器人关节值的方法。

OPC UA - 图片 38

项目 ID 是项目的指针值,可以通过 getItem() 方法获取。

OPC UA - 图片 39

我们将通过“ABB_RB1”项目名称获取项目 ID,并返回一个 UInt64 值。

OPC UA - 图片 40

将上一步获取的项目 ID 传入该方法时,会返回关节值。

OPC UA - 图片 41

getJointsStr

getJointsStr 是一种允许用户根据字符串值获取关节值的方法。

OPC UA - 图片 42

我们可以在此方法中传递机器人名称(字符串)。

OPC UA - 图片 43

在我的工作站中,ABB_RB1 是我的机器人名称。

OPC UA - 图片 44

我们只需在机器人名称参数中输入 "ABB_RB1",然后调用该方法--以字符串格式返回关节值。

OPC UA - 图片 45

setJointsStr

setJointsStr 是一个允许用户根据字符串值设置机器人关节值的方法。

OPC UA - 图片 46

在机器人名称中,传递的是 ABB_RB1,我们只需在关节参数中传递一个包含关节值的字符串即可。

举例来说:-0.000000,0.000000,-0.000000,-0.000000,-0.0,-0.000000

OPC UA - 图片 47

使用Beckhoff TwinCAT 3实现

您可以使用Beckhoff TwinCAT 3软件测试与RoboDK OPC UA服务器的连接性。

添加TwinCAT3服务器

首先,您需要选择I/O➔Devices➔Add New Item,即可创建OPC UA客户端。

OPC UA - 图片 48

从OPC中选择Virtual OPC UA Device➔OK。

OPC UA - 图片 49

已插入OPC UA Virtual设备。

OPC UA - 图片 50

我们需要添加一个 OPC UA 客户端来访问 RoboDK OPC UA 服务器。

选择右键点击Device 1➔Add New Item。

OPC UA - 图片 51

接下来:OPC UA Client(Module)➔OK

OPC UA - 图片 52

完成OPC UA客户端插入。

OPC UA - 图片 53

配置服务器

打开 OPC UA 客户端 > 进入设置选项卡 > 点击“选择端点”配置要访问的 OPC UA 服务器端点。

打开OPC UA Client, Settings选项卡➔Select Endpoint。

OPC UA - 图片 54

输入RoboDK OPC UA 服务器的URL,然后点击Update。

OPC UA - 图片 55

添加RoboDK服务器方法

点击Add Nodes,可以浏览OPC UA服务器内部的节点。

OPC UA - 图片 56

如果已建立TwinCAT与OPC UA服务器之间的连接,则可以看到OPC UA服务器的详细信息。

OPC UA - 图片 57

选择所有方法(紫色标志),然后Ok。

OPC UA - 图片 58

方法会插入到您的配置中。

OPC UA - 图片 59

自动生成RoboDK方法

在此字段中配置您的名称前缀。

OPC UA - 图片 60

点击:Create Plc Code,在TwinCAT创建PLC代码。

OPC UA - 图片 61

在项目中创建文件夹:OpcUaClient,并以IEC61131-3功能块格式创建所有RoboDK方法。

OPC UA - 图片 62

PLC程序示例

本节展示了Beckhoff TwinCAT PLC与RoboDK OPC UA服务器通信的示例程序。

PROGRAM MAIN

VAR

   bConnected      :BOOL;

   StationPointer  :DINT;

   iStep           :INT;

   bStart          :BOOL;;

   i               :INT;

   TON             :TON;

   bReset          :BOOL;

   bWrite          :BOOL;

   TON2            :TON;

   bShow           :BOOL:=TRUE;

   bVis            :BOOL:=True;

END_VAR



VAR

   Robot_name      :STRING(80):='ABB_RB1';

   Item_ID         :ULINT;

   arrJoints       :ARRAY[0..11]OF LREAL;

   strJoints       :STRING(80):='';

   arrJointsFromStr:ARRAY[1..11]OF LREAL;

   sSeparator      :STRING(1) := ',';

   arrJointsCommand:ARRAY[1..11]OF LREAL;

   strJointsCommand:STRING(80);

END_VAR



VAR CONSTANT

   cStepWaitCmd          :INT:=0;

   cStepInit             :INT:=5;

   cStepGetItem          :INT:=10;

   cStepGetItemReset     :INT:=20;

   cStepGetItemError     :INT:=990;



   cStepGetJoints        :INT:=30;

   cStepGetJointsReset   :INT:=40;

   cStepGetJointsError   :INT:=991;



   cStepGetJointsStr     :INT:=50;

   cStepGetJointsStrReset:INT:=60;

   cStepGetJointsStrError:INT:=992;



   cStepSetJointStrDelay :INT:=69;

   cStepSetJointsStr     :INT:=70;

   cStepSetJointsStrReset:INT:=80;

   cStepSetJointsStrError:INT:=993;



   cStepEnd              :INT:=300;

   cStepWaitReset        :INT:=999;

END_VAR





VAR

      aSplit        :ARRAY[1..11] OF STRING(80);

      bResultSplit  :BOOL;

        debug      :BOOL;

     URL              :STRING:='http://192.168.3.42:8091';

END_VAR

bConnected:=OPCUA_VirtualClient_RoboDK_Station.bConnected;



CASE iStep OF





   cStepWaitCmd:

        IF bStart THEN

              iStep:=cStepInit;

              bStart:=FALSE;

        END_IF



   cStepInit:



        StationPointer:=0;

        FOR i :=1 TO 11 DO

              arrJoints[i]:=0.0;

              arrJointsFromStr[i]:=0.0;

              aSplit[i]:='';

        END_FOR

        IF NOT OPCUA_VirtualClient_RoboDK_Station.getItem.bBusy

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getItem.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getJoints.bBusy

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getJoints.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getJointsStr.bBusy

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getJointsStr.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.setJoints.bBusy

              AND NOT OPCUA_VirtualClient_RoboDK_Station.setJoints.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bBusy

              AND NOT OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bError

              THEN

              iStep:=cStepGetItem;

        END_IF

        iStep:=cStepGetItem;



   cStepGetItem:



        IF OPCUA_VirtualClient_RoboDK_Station.getItem.bDone THEN

              iStep:=cStepGetItemReset;

        Item_ID:=OPCUA_VirtualClient_RoboDK_Station.getItem.Item_ID;

        ELSIF OPCUA_VirtualClient_RoboDK_Station.getItem.bError THEN

              iStep:=cStepGetItemError;

        END_IF



   cStepGetItemReset:



        IF NOT OPCUA_VirtualClient_RoboDK_Station.getItem.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getItem.bBusy

              THEN

              iStep:=cStepGetJoints;

        END_IF

   cStepGetJoints:



        IF OPCUA_VirtualClient_RoboDK_Station.getJoints.bDone

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getJoints.bBusy

              THEN

              iStep:=cStepGetJointsReset;

        ELSIF OPCUA_VirtualClient_RoboDK_Station.getJoints.bError THEN

              iStep:=991;

        END_IF



   cStepGetJointsReset:



        IF NOT OPCUA_VirtualClient_RoboDK_Station.getItem.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getItem.bBusy



              THEN

              iStep:=cStepGetJointsStr;

        END_IF;



   cStepGetJointsStr:



        IF OPCUA_VirtualClient_RoboDK_Station.getJointsStr.bDone

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getJointsStr.bBusy

              THEN

              iStep:=cStepGetJointsStrReset;

        ELSIF OPCUA_VirtualClient_RoboDK_Station.getJointsStr.bError THEN

              iStep:=cStepGetJointsStrError;

        END_IF



   cStepGetJointsStrReset:



        IF NOT OPCUA_VirtualClient_RoboDK_Station.getJointsStr.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.getJointsStr.bBusy

              THEN

                   iStep:=cStepSetJointStrDelay;

        END_IF;



   cStepSetJointStrDelay:

        strJointsCommand:=''; strJointsCommand:=CONCAT(LREAL_TO_STRING(arrJointsCommand[1]),strJointsCommand);

      strJointsCommand:=CONCAT(strJointsCommand,',');

   strJointsCommand:=CONCAT(strJointsCommand,LREAL_TO_STRING(arrJointsCommand[2]));

      strJointsCommand:=CONCAT(strJointsCommand,',');

   strJointsCommand:=CONCAT(strJointsCommand,LREAL_TO_STRING(arrJointsCommand[3]));

      strJointsCommand:=CONCAT(strJointsCommand,',');

   strJointsCommand:=CONCAT(strJointsCommand,LREAL_TO_STRING(arrJointsCommand[4]));

      strJointsCommand:=CONCAT(strJointsCommand,',');

   strJointsCommand:=CONCAT(strJointsCommand,LREAL_TO_STRING(arrJointsCommand[5]));

      strJointsCommand:=CONCAT(strJointsCommand,',');

   strJointsCommand:=CONCAT(strJointsCommand,LREAL_TO_STRING(arrJointsCommand[6]));

        TON2(IN:=TRUE,PT:=T#0.2S);

        IF TON2.Q THEN

              TON2(IN:=FALSE);

              iStep:=cStepSetJointsStr;

        END_IF



   cStepSetJointsStr:





        IF (

        OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bDone

              AND NOT

        OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bBusy

         )

              OR NOT bWrite

              THEN

              iStep:=cStepSetJointsStrReset;

        ELSIF OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bError

          THEN

              iStep:=cStepSetJointsStrError;

        END_IF



   cStepSetJointsStrReset:

        bWrite:=FALSE;

         OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bExecute:=FALSE;

        IF NOT OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bError

              AND NOT OPCUA_VirtualClient_RoboDK_Station.setJointsStr.bBusy

              THEN

              iStep:=cStepEnd;

        END_IF;



   cStepEnd:

        TON(IN:=TRUE,PT:=T#0.1S);

        IF TON.Q THEN

              TON(IN:=FALSE);

              IF NOT debug THEN

                   iStep:=10;

              ELSE

                   iStep:=cStepSetJointStrDelay;

              END_IF;

        END_IF



   cStepGetItemError:

        Item_ID:=0;

        iStep:=cStepWaitReset;



   cStepGetJointsError:

        FOR i :=0 TO 11 DO

              arrJoints[i]:=-99999.99;

        END_FOR

        iStep:=cStepWaitReset;



   cStepGetJointsStrError:

        strJoints:='';

        iStep:=cStepWaitReset;



   cStepWaitReset:

        IF bReset THEN

              iStep:=cStepInit;

              bReset:=FALSE;

        END_IF;

END_CASE



aSplit[1] := strJoints;



FOR i:=1 TO 7 DO

    bResultSplit := FindAndSplit(

   pSeparator  := ADR(sSeparator)

   ,pSrcString := ADR(aSplit[i])

   ,pLeftString:= ADR(aSplit[i])

   ,nLeftSize  := SIZEOF(aSplit[i])

   ,pRightString:= ADR(aSplit[i+1])

   ,nRightSize := SIZEOF(aSplit[i+1])

   ,bSearchFromRight := FALSE );

    IF NOT bResultSplit THEN

        EXIT;

    END_IF

END_FOR



FOR i :=1 TO 6 DO

   arrJointsFromStr[i]:=STRING_TO_LREAL(aSplit[i]);

END_FOR;



//

OPCUA_VirtualClient_RoboDK_Station.getItem(

bExecute:=iStep=cStepGetItem

,Item_Name:=Robot_name

);





OPCUA_VirtualClient_RoboDK_Station.getJoints(

bExecute:=iStep=cStepGetJoints

,Item_ID:=Item_ID,Joints=>arrJoints

);





OPCUA_VirtualClient_RoboDK_Station.getJointsStr(

bExecute:=iStep=cStepGetJointsStr

,Robot_name:=Robot_name,Joints=>strJoints

);



IF bWrite THEN

OPCUA_VirtualClient_RoboDK_Station.setJointsStr(

   bExecute:=TRUE

   ,Robot_name:=Robot_name,Joints:=strJointsCommand);

END_IF;
